PLC WECON LX3V-2416MR2H-A

Mã sản phẩm: LX3V-2416MR2H-A Tình trạng: Còn hàng

Giá: 3,444,000₫

Số lượng:

Cam kết 100% chính hãng

Miễn phí giao hàng

Hỗ trợ 24/7

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

PLC WECON BẢO HÀNH CHÍNH HÃNG 18 THÁNG

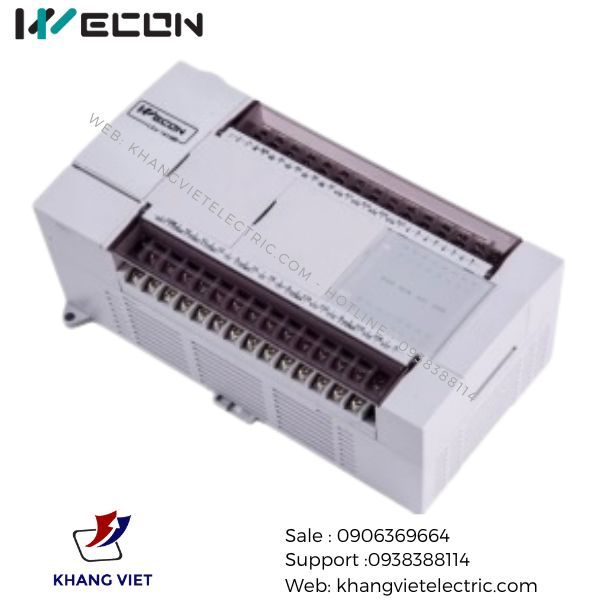

PLC WECON LX3V-2416MR2H-A

◇Power supply: AC85-265V power,D:DC24V power, 20W rated power output

◇IO:24xDI/16xDO( Transistor-type ),2-channel 100K high-speed pulse output

◇Port:RS422, RS485,2 BD board supported.

◇Protocol: 2N NO PROTOCOL, LX3V PROTOCOL

GENERAL
Item	LX3V Series
Running Mode	Round Scan/ Interrupt
Programming	Instruction List/ Ladder
Total Instructions	Basic Instructions: 27 / Applied Instruction: 138
Execute time	Basic Instructions: 0.06us / Applied Instruction: 1~10us
System Storage	16K
Download/ Monitoring	Serial Programming Cable / Mini USB
High Speed Pulse Output	Transistor: 2 channels (4 channel optional) / Relay N/A (2 channel optional)
External Interrupt	6 Channels
Timer Interrupt	3 Channels
Holding Addresses	Adjustable
Storage	FLASH
Filter	For all X input terminals
Serial Port	COM1: RS422 or RS485 COM2: RS485
Temperature	Working Temperature: 0 ~ 55℃ / Storage Temperature: -20 ~ 70℃
Humidity	5~ 85%RH (Without condensation)
Shock Resistance	JIS C 0040 Standard
Influence Immunity	Meet the IEC61000-4-4 and GB/T 17626.4 standard: Noise voltage amplitude 1KVP-P, pulse width 10us, period 0.3 s, edge time 5ns, duration 1min.
