PI3043ie / PI3043ieS-N : HMI 4.3 inch Bảo hảnh 18 tháng, tuổi thọ đến 50.000h
PI3043ie / PI3043ieS-N HMI

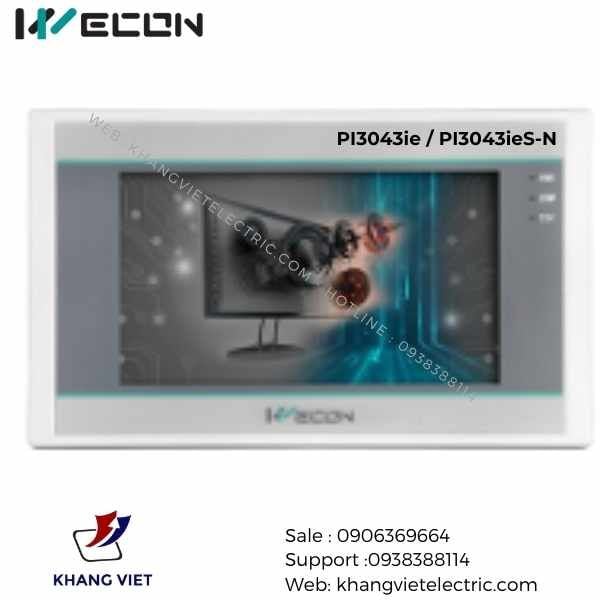

Wecon PI 4.3 inch HMI: PI3043ie
◇Ports use 7P Terminals, which extremely save space.
◇Hardware: Cortex A35 1.2GHz, 128M FLASH+ DDRII 64MB
◇Display size: 4.3 inch
◇Resolution: 480×272 TFT LCD, 16,000K colors
◇Interface: RS232, RS422 / RS485 (2 in 1)
| Model | PI3043ie | PI3043ieS-N |
Main | OS | Linux 4.4.0 QT based | Linux 4.4.0 QT based |
Processor | Cortex A35 1.2GHz | Cortex A35 1.2GHz |
Display | Size | 4.3" | 4.3" |
Screen | TFT | TFT |
Resolution | 480*272 | 480*272 |
Color | 16,000k colors | 16,000k colors |
Brightness (cd/m2) | 300 | 300 |
Backlight | LED | LED |
Backlight Lifetime | 50,000 hours | 50,000 hours |
Touch Panel | High precision four-wire resistive | High precision four-wire resistive |
Storage | Memory | 64 MB | 64 MB |
Flash | 128 MB | 128 MB |
SD Card Slot | -- | -- |
USB Port | Micro USB | Micro USB |
RTC | Real-time clock | Yes | Yes |
Calendar | Yes | Yes |
I/O Port | COM1 | CN1:RS422/RS485 CN2: RS232 | CN1:RS422/RS485 CN2:RS232 CN3:RS485 |
COM2 | -- | -- |
COM3 | -- | -- |
Ethernet | -- | x1 |
CANopen | -- | -- |
Wi-Fi | -- | -- |
4G LTE | -- | -- |
Power | Rated Power | < 5W | < 5W |
Power Voltage | DC 24V | DC 24V |
Input range | DC 12 ~ 28V | DC 12 ~ 28V |
Shell Color | Grey | Grey |
Enclosure | Shell Material | PC+ABS | PC+ABS |
Overall Size (mm) | 142.0W*86.0W*30.3D | 142.0W*86.0W*30.3D |
Mounting Size (mm) | 131.0W*78.0D | 131.0W*78.0D |
Mounting Method | Panel Mount | Panel Mount |
Weight (Kg) | 0.3 | 0.3 |
Environment | Working Temperature | 0 ~ 50°C | 0 ~ 50°C |
Storage Temperature | -20 ~ 60°C | -20 ~ 60°C |
Humidity | 10 ~ 90%RH (Non-condensing) | 10 ~ 90%RH (Non-condensing) |
Vibration Resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
Cooling | Air Cooling | Air Cooling |
Software | Programming | PIStudio | PIStudio |
Remote Access | -- | -- |
Email Alarm | -- | -- |
IP Camera | -- | -- |
Audio Output | -- | -- |
Video Player | -- | -- |
| Data Tool | Yes | Yes |
Certificates | IP Code | IP65 (Front panel) | IP65 (Front panel) |
CE | CE Marked | CE Marked |
FCC | FCC Class A | FCC Class A |
UL | -- | -- |
