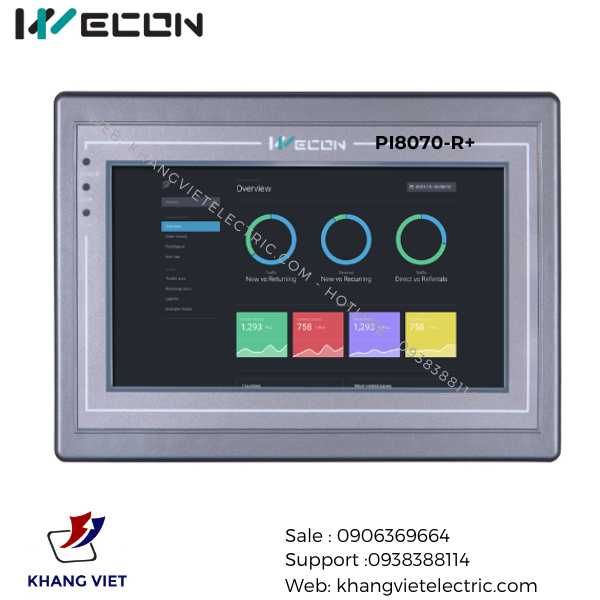

PI8070+ Wecon PI 7 inch HMI : PI8070+
◇Hardware: CORTEX A8 600MHZ CPU, DDRII 512MB RAM, 2GB FLASH ◇Display size: 7 inch ◇Resolution: 800×480 TFT LCD, 16,000k colors ◇Interface: RS232/RS485/RS422 (5 COM ports available) ◇Storage: Support Date Storage, SD Card, U Disk ◇ Mobile Apps supported, Cloud monitor supported, Multiple users supported, communication encrypted. ◇ Programmed by PIStudio ◇WINCE7.0 LINUX is optional
PI8070+ HMI Wecon : Bảo hảnh 18 tháng, tuổi thọ đến 50.000h Series PI8000 PI8000 Model PI8070+ PI8070-R+ Main
OS Linux 3.2.0 QT based Linux 3.2.0 QT based Processor Cortex A8 600MHz Cortex A8 600MHz Display
Size 7" 7" Screen TFT TFT Resolution 800*480 800*480 Color 16,000k colors 16,000k colors Brightness (cd/m2) 300 300 Backlight LED LED Backlight Lifetime 50,000 hours 50,000 hours Touch Panel High precision four-wire resistive High precision four-wire resistive Storage
Memory 512 MB 512 MB Flash 2 GB 2 GB SD Card Slot Yes Yes USB Port USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client RTC
Real-time clock Yes Yes Calendar Yes Yes I/O Port
COM1 CN1:RS422/RS485 CN2: RS232 CN1:RS422/RS485 CN2: RS232 COM2 CN1:RS485 CN2: RS232 CN1:RS485 CN2: RS232 COM3 RS485 RS485 Ethernet x1 x1 CANopen Optional Optional Wi-Fi -- -- 4G LTE -- -- Power
Rated Power < 10W < 10W Power Voltage DC 24V DC 24V Input range DC 12 ~ 28V DC 12 ~ 28V Shell Color Grey Grey Enclosure
Shell Material ABS ABS Overall Size (mm) 200.1W*146.0H*36.5D 200.1W*146.0H*36.5D Mounting Size (mm) 192.0W*138.0H 192.0W*138.0H Mounting Method Panel Mount Panel Mount Weight (Kg) 0.6 0.6 Environment
Working Temperature -10 ~ 60°C -10 ~ 60°C Storage Temperature -30 ~ 70°C -30 ~ 70°C Humidity 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) Vibration Resistance 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) Cooling Air Cooling Air Cooling Software
Programming PIStudio PIStudio Remote Access -- WAN Email Alarm -- -- IP Camera -- -- Audio Output -- -- Video Player -- -- Data Tool Yes Yes Certificates
IP Code IP65 (Front panel) IP65 (Front panel) CE CE Marked CE Marked FCC FCC Class A FCC Class A UL -- --
