BIẾN TẦN WECON VB-4T022GB/030PB

Mã sản phẩm: VB-4T022GB/030PB Tình trạng: Còn hàng

Giá: 11,794,000₫

Số lượng:

Cam kết 100% chính hãng

Miễn phí giao hàng

Hỗ trợ 24/7

Hoàn tiền 111% nếu hàng giả

Mở hộp kiểm tra nhận hàng

Đổi trả trong 7 ngày

Mô tả sản phẩm

VB-4T022GB/030PB

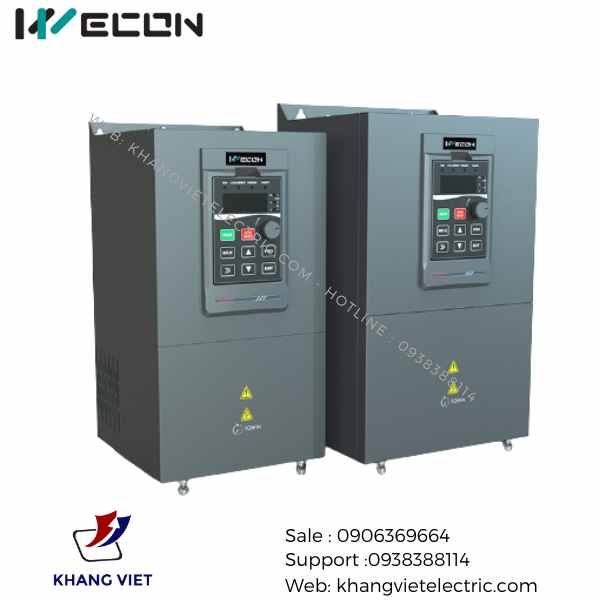

Biến tần Wecon VB-4T022GB/030PB

Nguồn cấp : 3 pha - 380V

Ngõ ra : 3 pha - 380V

Technical specifications

Item		Specifications
Control features	Control mode	Sensorless vector control（SVC）	V/F control
	Startup torque	0.5Hz/150%	0.5Hz/100%
	Speed range	02:40	01:50
	Speed stability accuracy	±0.5%	±1%
	Carrier frequency	0.5kHz ~ 16kHz; the carrier frequency is automatically adjusted based on the load features.
	Overload capacity	G type: 60s for 150% of the rated current, 1s for 180% of the rated current. P type: 60s for 120% of the rated current, 1s for 150% of the rated current.
	Torque boost	Fixed boost; Customized boost 0.1% ~ 30.0%.
Input and Output	Input voltage range	220V/380V; fluctuation range :±15%
	Input frequency range	50/60Hz；fluctuation range :±5%
	Output voltage range	0-input voltage; the error is less than 5%
	Output frequency range	SVC:0-320Hz；V/F:0-1000Hz
Running control	Running command source	Three command source:keypad; control terminals; serial communication port. You can perform switchover between these sources in various ways.
	Frequency source	There are 10 frequency sources in total, such as digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. You can perform switchover between these sources in various ways.
	Auxiliary frequency source	There are ten auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis.
	Input terminal	✎ 6 digital input terminals (DI), ✎ 2 analog input terminals (AI).
	Output terminal	✎ 1 open-collector output terminal ✎ 2 relay output terminal. ✎ 2 analog output terminal .
Basic function	DC braking	Braking time: 0.0s ~ 100.0s; Braking action current value: 0.0% ~ 100.0%
	V/F curve	Three modes: straight-line V/F curve, multi-point V/F curve, square V/F curve.
	Ramp mode	Straight-line ramp, S-curve ramp; Four kinds of acceleration/deceleration time with the range of 0.0-6500.0s.
	Simple PLC/Multiple speeds	It implements up to 16 speeds via the simple PLC function or combination of DI terminal states.
	Built-in PID	It realizes process-controlled closed loop control system easily.
	AVR function	It can keep constant output voltage automatically when the mains voltage changes.
	Overvoltage/Overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage and overcurrent.
	Rapid current limit	It helps to avoid frequent overcurrent faults of the AC Drive.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process.
	Timing control	Timing control function: time range: 0h ~ 65535h
	Protection mode	Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection and so on.
Display and Key operation	LED display	It displays the parameters.
	Parameters locking function	It can lock the parameters to prevent malfunction.
	MF.K key	Programmable key: command source switchover/ forward and reverse running/ JOG running/menu mode switchover
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
	Altitude	Lower than 1000m. When it is higher than 1000m, for every 100m, it needs to reduce power by 1%, and the maximum altitude is 3000m.
	Ambient temperature	-10℃~ 40℃. When it is higher than 40℃, for every 1℃, it needs to reduce power by 1%, and the maximum ambient temperature is 50℃
	Humidity	≤95%RH, without condensing
	Vibration	Less than 5.9m/s2 (0.6g)
	Storage temperature	-25℃~+60℃

Model Description

VB – 4 T 18R5GB / 022PB

① ② ③ ④ ⑤

Field	No.	Identification	Description
Product series	①	Product series	VB: general vector series
Voltage grade	②	Voltage grade	2: 220VAC； 4: 380VAC
The input power	③	Power phase identification	S: single ； T: three-phase
Rated power 1	④	The power range of G type	18R5:18.5kW,R is the decimal point G—Constant torque load B—Built-in brake unit
Rated power 2	⑤	The power range of P type	022:22kW P—Variable torque load B—Built-in brake unit

Product Model

AC Drive Model	Rated power	Power capacity	Input current	Output current	Motor G/P
AC Drive Model	kW	kVA	A	A	kW	HP
VB-2SR75GB	0.75	1.5	8.2	4.5	0.75	1
VB-2S1R5GB	1.5	3	14	7	1.5	2
VB-2S2R2GB	2.2	4	23	9.6	2.2	3
VB-4TR75GB	0.75	1.5	3.4	2.1	0.75	1
VB-4T1R5GB	1.5	3	5.0	3.8	1.5	2
VB-4T2R2GB	2.2	4	5.8	5.1	2.2	3
VB-4T004GB/5R5PB	4/5.5	5.9/8.9	10.5/14.6	9/13	4/5.5	5.5/7.5
VB-4T5R5GB/7R5PB	5.5/7.5	8.9/11	14.6/20.5	13/17	5.5/7.5	7.5/10
VB-4T7R5GB	7.5	11	20.5	17	7.5	10
VB-4T011GB/015PB	11/15	17/21	26/35	25/32	11/15	15/20
VB-4T015GB/18R5PB	15/18.5	21/24	35/38.5	32/37	15/18.5	20/25
VB-4T18R5GB/022PB	18.5/22	24/30	38.5/46	37/45	18.5/22	25/30
VB-4T022GB/030PB	22/30	30/40	46.5/62	45/60	22/30	30/40
VB-4T030G/037P	30/37	40/57	62/76	60/75	30/37	40/50
VB-4T037G/045P	37/45	57/69	76/92	75/91	37/45	50/60
VB-4T045G/055P	45/55	69/85	92/113	91/110	45/55	60/70
VB-4T055G/075P	55/75	85/114	113/157	112/150	55/75	70/100
VB-4T075G/093P	75/93	114/134	157/180	150/170	75/93	100/125
VB-4T093G/110P	93/110	134/160	180/214	170/210	93/110	125/150
VB-4T110G/132P	110/132	160/192	214/256	210/253	110/132	150/180
VB-4T132G/160P	132/160	192/231	256/307	253/304	132/160	180/220
VB-4T160G/185P	160/185	231/245	307/345	304/340	160/185	220/250
VB-4T185G/200P	185/200	245/260	345/385	340/377	185/220	250/275
VB-4T200G/220P	200/220	260/280	385/430	377/426	200/220	275/300
VB-4T220G/250P	220/250	280/355	430/468	426/465	220/250	300/340
VB-4T250G/280P	250/280	355/396	468/525	465/520	250/280	340/380
VB-4T280G/315P	280/315	396/445	525/590	520/585	280/315	380/430
VB-4T315G/355P	315/355	445/500	590/665	585/650	315/355	430/480
VB-4T355G/400P	355/400	500/565	665/785	650/725	355/400	480/545
VB-4T400G	400	565	785	725	400	545

Overall structural drawing

Unit: mm

Figure 2-1-1 0.75kW-7.5kW outline dimension diagram

AC Drive Model	Overall Dimensions				Mounting Hole		Mounting Hole Diameter
	H	W	D	D1	H1	W1	d
VB-2SR75GB	187	88	138	130	177	73	5
VB-2S1R5GB
VB-2S2R2GB
VB-4TR75GB
VB-4T1R5GB
VB-4T2R2GB
VB-4T004GB/5R5PB	207	100	147	139	197	85	5
VB-4T5R5GB/7R5PB	247	130	167	159	237	113	5
VB-4T7R5GB

Table 2-1-1 0.75kW-7.5kW outline dimension

Figure 2-1-2 11kW-110kW outline dimension diagram

AC Drive Model	Overall Dimensions				Mounting Hole		Mounting Hole Diameter
	H	W	D	D1	H1	W1	d
VB-4T011GB/015PB	348	182	211	196	331	156	6
VB-4T015GB/18R5PB
VB-4T18R5GB/022PB	373	220	205	190	356	156	6
VB-4T022GB/030PB
VB-4T030G/037P	435	256	222	208	419	170	6
VB-4T037G/045P
VB-4T045G/055P	543	310	280	265	523	245	10
VB-4T055G/075P
VB-4T075G/093P	580	358	328	314	560	270	10
VB-4T093G/110P
VB-4T110G/132P

Table 2-1-2 11kW-110kW outline dimension

Figure 2-1-3 132kW-400kW outline dimension diagram

AC Drive Model	Overall Dimensions					Mounting Hole		Mounting Hole Diameter
	H	H2	W	D	D1	H1	W1	d
VB-4T132G/160P	1199	350	502	355	342	842	320	10
VB-4T160G/185P
VB-4T185G/200P
VB-4T200G/220P	1570	426	600	408	398	1147	400	12
VB-4T220G/250P
VB-4T250G/280P
VB-4T280G/315P
VB-4T315G/355P	1696	426	800	408	398	1266	520	12
VB-4T355G/400P
VB-4T400G

Table 2-1-3 132kW-400kW outline dimension

✎Note: The standard configuration of 132kW-185kW does not include base bracket. Please specify when ordering if necessary.

Keypad and installation

Unit: mm

Keypad size

Two keyboards of different sizes are designed according to the power section.

Figure 2-2-1-1 Keypad size1

Single-phase 220V: 0.75kW-2.2kW
Three-phase 220V: 0.75kW-4kW
Three-phase 380V: 0.75kW-7.5kW）

Figure 2-2-1-2 Keypad size2

Three-phase 220V: 5.5kW-7.5kW
Three-phase 380V: 11kW-400kW）

Keypad bracket

Unit: mm

ower Range

Single-phase 220V :0.75kW-2.2kW

Three-phase 220V :0.75kW-4kW

Three-phase 380V :0.75kW-7.5kW

Three-phase 220V :5.5kW-7.5kW

Three-phase 380V :11kW-400kW

Keypad bracket

Table 2-2-2-1 Different bracket sizes of various power range keypad when being extended

Main circuit connection

Figure 2-3-1 Main circuit wiring diagram 1

Figure 2-3-2 Main circuit wiring diagram 2

Terminal mark	Name	Description
R/L. S. T/N	Power supply input terminals	Connect to the AC power supply
（ + ）. （ - ）	Positive and negative terminals of DC bus	Common DC busbar input terminal (Connect terminals for external brake units of 30KW and above)
（ + ）. PB	Brake resistance connecting terminal.	Connect to the braking resistor
P.（ + ）	Connecting terminals of DC reactor	Dc reactor connection terminal 30kW-110kW:External dc reactor 132kW-400kW:Built - in DC reactor
U. V. W	AC drive output terminals	Connect the three-phase motor.
	Grounding terminal	Must be grounded.

Control circuit connection

Control terminal configuration 1

Figure 2-4-1-1 Control terminal diagram 1

Model reference:

Single-phase 220V: 0.75kW-2.2kW
Three-phase 220V: 0.75kW-4kW
Three-phase 380V: 0.75kW-7.5kW

Control terminal configuration 2

Figure 2-4-2-1 Control terminal diagram 2

Model reference:

Three-phase 220V: 5.5kW-7.5kW
Three-phase 380V: 11kW-400kW

Control terminals&functions

Category	Terminal symbol	Terminal name	Function description
Power supply	#ERROR!	＋10V power supply	Provide +10V power supply to external unit. Generally, it provides power supply to external potentiometer with resistance range of 1-5 kΩ. Maximum output current: 20 mA
	#ERROR!	＋24V power supply	Provide +24V power supply to external unit. Generally, it provides power supply to DI/DO terminals and external sensors. Maximum output current: 150 mA
	OP	External power input terminal	Connect to +24V by default. When DI1-DI6 need to be driven by extemal signal, OP needs to be connected to external power supply and be disconnected from +24V.
Analog input	AI1-GND	Analog input terminal 1	1. Input voltage range: 0-10V 2. Input resistance: 22 kΩ
Analog input	AI2-GND	Analog input terminal 2	1. Input range: 0-10V/4-20mA, decided by jumper J8 on the control board. 2. Input resistance: 22 kΩ(voltage input), 500Ω(current input)
Digital input	DI1	Digital input 1	1. Optical coupling isolation, compatible with dual polarity input 2. Input resistance: 3kΩ 3. Voltage range for level input: 9V -30V
	DI2	Digital input 2
	DI3	Digital input 3
	DI4	Digital input 4
	DI5	Digital input 5
	DI6	Digital input 6
Analog output	AO1-GND	Analog output 1	AO1: Voltage or current output is decided by jumper J5. Output voltage range: 0-10V Output current range: 0-20mA AO2: Output voltage range: 0-10V
Analog output	AO2-GND	Analog output 2
Digital output	FM-CME	Digital output/high-speed pulse output	open collector output Output voltage range: 0V -24V Output current range: 0mA - 50mA Note that CME and COM are internally insulated, but they are shorted by jumper externally. If you want to drive FM by external power supply, Please remove the jumper.
Relay output	T1A-T1B	NO terminal	Contact driving capacity: AC 250V,3A,COSø=0.4； DC 30V,1A.
	T1A-T1C	NC terminal
	T2A-T2C	NO terminal
Communication port and socket		RS+	RS485 signal positive terminal
Communication port and socket		RS-	RS485 signal negative terminal
