HMI Wecon PI3000IE sử dụng chip Cortex A35 1.2GHz, 128M FLASH+ DDRII 64MB là dòng sản phảm update mới của Wecon với nhiều update mới Hiệu suất cao, khởi động nhanh 6s, cảm ứng mượt, giao tiếp truyền thông ổn định hơn với các dòng sản phẩm hỗ trợ từ 3.5 inch đến 10 inch như sau: PI3035ie, PI3043ie / PI3043ieS-N, PI3070ie, PI3102ie .

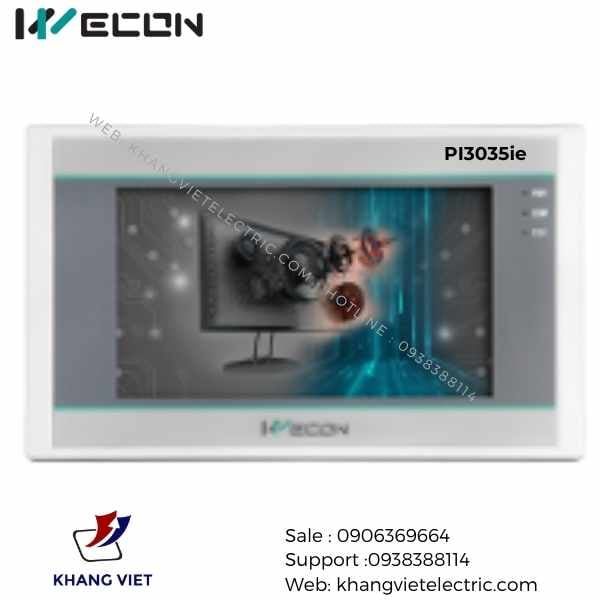

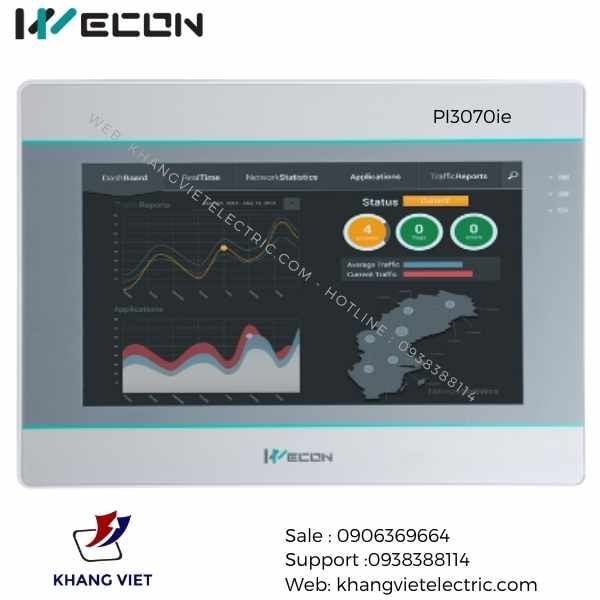

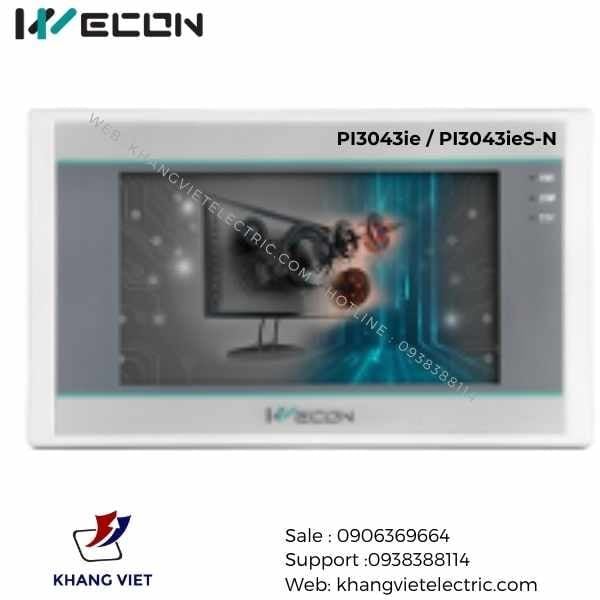

PI3035ie : 3.5 inch PI3043ie / PI3043ieS-N : 4.3 inch PI3070ie : 7 inch PI3102ie : 10 inch Đặc biệt HMI Wecon được bảo hành chính hãng 18 tháng
Thông số kỹ thuật dòng HMI PI3000IE.
Series PI3000ie PI3000ie PI3000ie PI3000ie PI3000ie PI3000ie Model PI3035ie PI3043ie PI3043ieS-N PI3070ie PI3102ie Main
OS Linux 4.4.0 QT based Linux 4.4.0 QT based Linux 4.4.0 QT based Linux 4.4.0 QT based Linux 4.4.0 QT based Processor Cortex A35 1.2GHz Cortex A35 1.2GHz Cortex A35 1.2GHz Cortex A35 1.2GHz Cortex A35 1.2GHz Display
Size 3.5" 4.3" 4.3" 7" 10.2" Screen TFT TFT TFT TFT TFT Resolution 320*240 480*272 480*272 800*480 1024*600 Color 16,000k colors 16,000k colors 16,000k colors 16,000k colors 16,000k colors Brightness (cd/m2) 300 300 300 250 350 Backlight LED LED LED LED LED Backlight Lifetime 50,000 hours 50,000 hours 50,000 hours 50,000 hours 50,000 hours Touch Panel High precision four-wire resistive High precision four-wire resistive High precision four-wire resistive High precision four-wire resistive High precision four-wire resistive Storage
Memory 64 MB 64 MB 64 MB 64 MB 64 MB Flash 128 MB 128 MB 128 MB 128 MB 128 MB SD Card Slot -- -- -- -- -- USB Port Micro USB Micro USB Micro USB USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client RTC
Real-time clock Yes Yes Yes Yes Yes Calendar Yes Yes Yes Yes Yes I/O Port
COM1 CN1:RS422/RS485 CN2: RS232 CN1:RS422/RS485 CN2: RS232 CN1:RS422/RS485 CN2:RS232 CN3:RS485 CN1:RS422/RS485 CN2: RS232 CN1:RS422/RS485 CN2: RS232 COM2 -- -- -- -- -- COM3 -- -- -- -- -- Ethernet -- -- x1 -- -- CANopen -- -- -- -- -- Wi-Fi -- -- -- -- -- 4G LTE -- -- -- -- -- Power
Rated Power < 5W < 5W < 5W < 15W < 15W Power Voltage DC 24V DC 24V DC 24V DC 24V DC 24V Input range DC 12 ~ 28V DC 12 ~ 28V DC 12 ~ 28V DC 12 ~ 28V DC 12 ~ 28V Shell Color Grey Grey Grey Grey Grey Enclosure
Shell Material PC+ABS PC+ABS PC+ABS PC+ABS PC+ABS Overall Size (mm) 96.0*81.0*33.0 W*H*D 142.0*86.0*30.3 W*H*D 142.0*86.0*30.3 W*H*D 201.2*147.2*39.0 W*H*D 272.0*190.0*41.5 W*H*D Mounting Size (mm) 91.0W*73.0D 131.0W*78.0D 131.0W*78.0D 192.0W*138.0H 260.0W*179.0H Mounting Method Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Weight (Kg) 0.14 0.3 0.3 0.52 01.02 Environment
Working Temperature -10 ~ 55°C 0 ~ 50°C 0 ~ 50°C -10 ~ 60°C -10 ~ 60°C Storage Temperature -20 ~ 70°C -20 ~ 60°C -20 ~ 60°C -20 ~ 70°C -20 ~ 70°C Humidity 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) Vibration Resistance 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) Cooling Air Cooling Air Cooling Air Cooling Air Cooling Air Cooling Software
Programming PIStudio PIStudio PIStudio PIStudio PIStudio Remote Access -- -- -- -- -- Email Alarm -- -- -- -- -- IP Camera -- -- -- -- -- Audio Output -- -- -- -- -- Video Player -- -- -- -- -- Data Tool Yes Yes Yes Yes Yes Certificates
IP Code IP65 (Front panel) IP65 (Front panel) IP65 (Front panel) IP65 (Front panel) IP65 (Front panel) CE CE Marked CE Marked CE Marked CE Marked CE Marked FCC FCC Class A FCC Class A FCC Class A FCC Class A FCC Class A UL -- -- -- -- --
