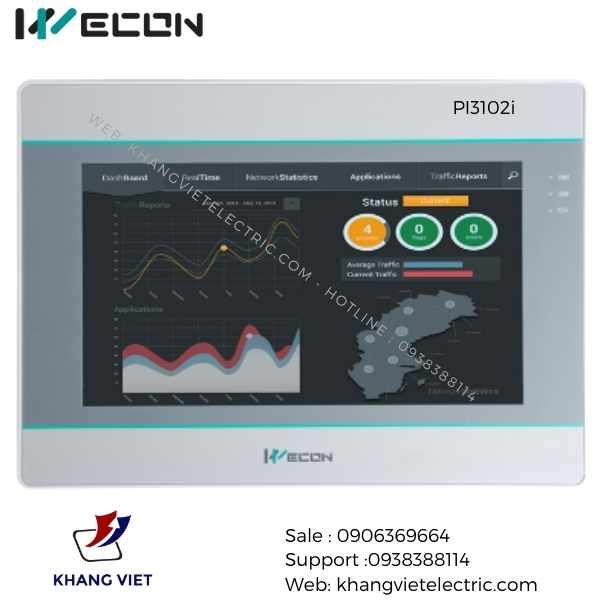

HMI Wecon PI3000i sử dụng chip CPU Cortex A7 528MHz,128M FLASH, 128M DRMIII RAM là dòng sản phảm update mới của Wecon với nhiều update mới tuổi thọ lên đến 50.000 giờ Hiệu suất cao, khởi động nhanh 6s, cảm ứng mượt, giao tiếp truyền thông ổn định hơn với các dòng sản phẩm hỗ trợ từ 3.5 inch đến 10 inch như sau: PI3070i, PI3070i-SL, PI3070i-N-SL, PI3102i, PI3070N-CE, PI3102H-CE , PI3070i-A, PI3102i-A
Đặc biệt HMI Wecon PI3070i được bảo hành chính hãng 18 tháng
Thông số kỹ thuật dòng HMI PI3000i.
Series PI3000i PI3000i PI3000i PI3000i PI3000i Model PI3070i PI3102i PI3070i-A PI3102i-A Main
OS Linux 4.9.11 QT based Linux 4.9.11 QT based Linux 4.9.11 QT based Linux 4.9.11 QT based Processor Cortex A7 528MHz Cortex A7 528MHz Cortex A7 528MHz Cortex A7 528MHz Display
Size 7" 10.2" 7" 10.2" Screen TFT TFT TFT TFT Resolution 800*480 1024*600 800*480 1024*600 Color 16,000k colors 16,000k colors 16,000k colors 16,000k colors Brightness (cd/m2) 250 350 250 350 Backlight LED LED LED LED Backlight Lifetime 50,000 hours 50,000 hours 50,000 hours 50,000 hours Touch Panel High precision four-wire resistive High precision four-wire resistive High precision four-wire resistive High precision four-wire resistive Storage
Memory 128 MB 128 MB 128 MB 128 MB Flash 128 MB 128 MB 128 MB 128 MB SD Card Slot -- -- YES YES USB Port USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client RTC
Real-time clock Yes Yes Yes Yes Calendar Yes Yes Yes Yes I/O Port
COM1 CN1:RS422/RS485 CN2: RS232 CN1:RS422/RS485 CN2: RS232 RS232,RS422/RS485 RS232,RS422/RS485 COM2 -- -- RS232,RS485 RS232,RS485 COM3 -- -- RS485 RS485 Ethernet -- x1 x1 x1 CANopen -- -- x1 x1 Wi-Fi -- -- -- -- 4G LTE -- -- -- -- Power
Rated Power < 8W < 10W < 8W < 10W Power Voltage DC 24V DC 24V DC 24V DC 24V Input range DC 12 ~ 28V DC 12 ~ 28V DC 12 ~ 28V DC 12 ~ 28V Shell Color Grey Grey Grey Grey Enclosure
Shell Material PC+ABS PC+ABS Plastic+ABS (Polycarbonate) PC+ABS Overall Size (mm) 201.2W*147.2H*39.0D 272.0W*190.0H*41.5D 200.0W*146.0H*36.5D 272.0W*190.0H*41.5D Mounting Size (mm) 192.0W*138.0H 260.0W*179.0H 192W*138H 260.0W*179.0H Mounting Method Panel Mount Panel Mount Panel Mount Panel Mount Weight (Kg) 0.74 1.31 0.74 1.31 Environment
Working Temperature -10 ~ 60°C -10 ~ 60°C -10 ~ 55°C -10 ~ 60°C Storage Temperature -20 ~ 70°C -20 ~ 70°C -20 ~ 70°C -20 ~ 70°C Humidity 10 ~ 85%RH (Non-condensing) 10 ~ 85%RH (Non-condensing) 10 ~ 85%RH (Non-condensing) 10 ~ 85%RH (Non-condensing) Vibration Resistance 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) Cooling Air Cooling Air Cooling Air Cooling Air Cooling Software
Programming PIStudio PIStudio PIStudio PIStudio Remote Access -- -- Yes -- Email Alarm -- -- UD -- IP Camera -- -- -- -- Audio Output -- -- -- -- Video Player -- -- -- -- Data Tool Yes Yes -- Yes Certificates
IP Code IP65 (Front panel) IP65 (Front panel) Yes IP65 (Front panel) CE CE Marked CE Marked IP65 (Front panel) CE Marked FCC FCC Class A FCC Class A CE Marked FCC Class A UL -- -- FCC Class A --
