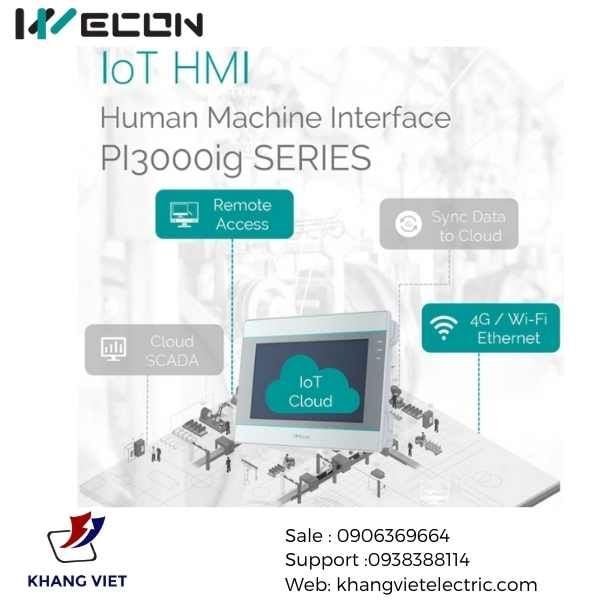

PI3070IG là HMI WECON dòng HMI IOT hỗ trợ giám sát và điều khiển từ xa dễ dàng trên điện thoại (Adroid và IOS), máy tính ở bất cứ nơi đâu, hỗ trợ hơn 300 protocol PLC, hỗ trợ modbus tcp/ip, modbus RTU.... Giờ đây bạn có thể quản lý hệ thống của mình ở bất cứ nơi đâu chỉ cần có kết nối internet.
Lập trình đơn giản, chỉ cần kéo thả khai báo, cloud free, hỗ trợ kỹ thuật 24/7
HMI IOT Pi3070IG được bảo hành chính hãng 18 tháng.

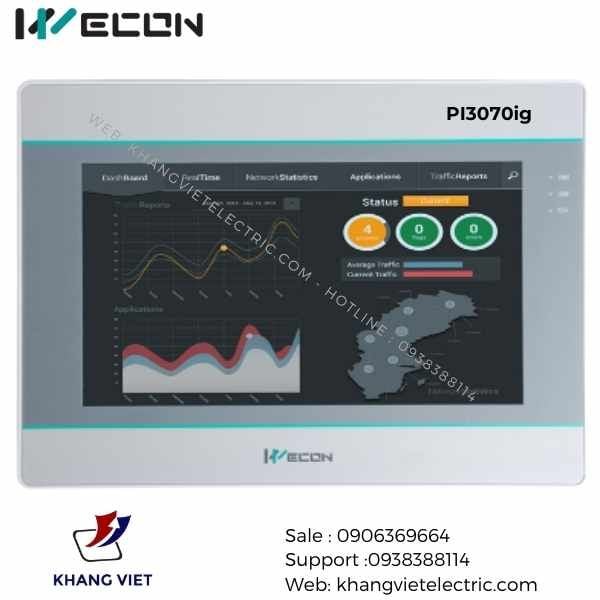

PI3070ig CPU A35 1.2GHz, 128M Flash, 128M DDRAM Display:7 inches; Resolution: 800*480; Display color: 16,000k colors Interfaces: a serial port. COM1: RS232, RS422 or RS485(choose one of two), RS485. USB interfaces: USB Host/USB Client Remote monitoring and WVPN pass-through download. PI3070ig-C supports related functions of V-NET, Ethernet pass-through download and sync data to cloud. Cấu hình HMI PI3070ig-PI3102ig
Main
OS Linux 4.4.0 QT based Linux 4.4.0 QT based Processor Cortex A35 1.2GHz Cortex A35 1.2GHz Display
Size 7" 10.2" Screen TFT TFT Resolution 800*480 1024*600 Color 16,000k colors 16,000k colors Brightness (cd/m2) 250 350 Backlight LED LED Backlight Lifetime 50,000 hours 50,000 hours Touch Panel High precision four-wire resistive High precision four-wire resistive Storage
Memory 128 MB 128 MB Flash 128 MB 128 MB SD Card Slot YES YES USB Port USB2.0 Host + USB2.0 Client USB2.0 Host + USB2.0 Client RTC
Real-time clock Yes Yes Calendar Yes Yes I/O Port
COM1 CN1:RS422/RS485 CN2:RS232 CN3:RS485 CN1:RS422/RS485 CN2:RS232 CN3:RS485 COM2 -- -- COM3 -- -- Ethernet x1 x1 CANopen -- -- Power
Rated Power < 15W < 15W Power Voltage DC 24V DC 24V Input range DC 12 ~ 28V DC 12 ~ 28V Shell Color Grey Grey Enclosure
Shell Material PC+ABS PC+ABS Overall Size (mm) 201.2W*147.2H*39.0D 272.0W*191.0H*41.5D Mounting Size (mm) 192.0W*138.0H 260.0W*179.0H Mounting Method Panel Mount Panel Mount Weight (Kg) 0.52 44593 Environment
Working Temperature 30 ~ 70°C 30 ~ 70°C Storage Temperature -10 ~ 60°C -10 ~ 60°C Humidity 10 ~ 90%RH (Non-condensing) 10 ~ 90%RH (Non-condensing) Vibration Resistance 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) Cooling Air Cooling Air Cooling Software
Programming PIStudio PIStudio Remote Access -- -- Email Alarm -- -- IP Camera -- -- Audio Output -- -- Video Player -- -- Data Tool Yes Yes Certificates
IP Code IP65 (Front panel) IP65 (Front panel) CE CE Marked CE Marked FCC FCC Class A FCC Class A
Bảng so sánh IOT HMI dòng PI3000ig
Model COM Ethernet Monitoring Alarm Data Record Validity WIFI / 4G Pass-through Script PI3070ig 3 in 1 1 N/A N/A N/A N/A N/A WVPN YES PI3070ig (4G) 3 in 1 1 N/A N/A N/A N/A 4G WVPN YES PI3070ig (WIFI) 3 in 1 1 N/A N/A N/A N/A WIFI WVPN YES PI3070ig-C 3 in 1 1 100 20 50 60 days / 1 millions N/A WVPN YES PI3070ig-C(4G) 3 in 1 1 100 20 50 60 days / 1 millions 4G WVPN YES PI3070ig-C(WIFI) 3 in 1 1 100 20 50 60 days / 1 millions WIFI WVPN YES PI3102ig 3 in 1 1 N/A N/A N/A N/A N/A WVPN YES PI3102ig (4G) 3 in 1 1 N/A N/A N/A N/A 4G WVPN YES PI3102ig (WIFI) 3 in 1 1 N/A N/A N/A N/A WIFI WVPN YES PI3102ig-C 3 in 1 1 100 20 50 60 days / 1 millions N/A WVPN YES PI3102ig-C(4G) 3 in 1 1 100 20 50 60 days / 1 millions 4G WVPN YES PI3102ig-C(WIFI) 3 in 1 1 100 20 50 60 days / 1 millions WIFI WVPN YES
