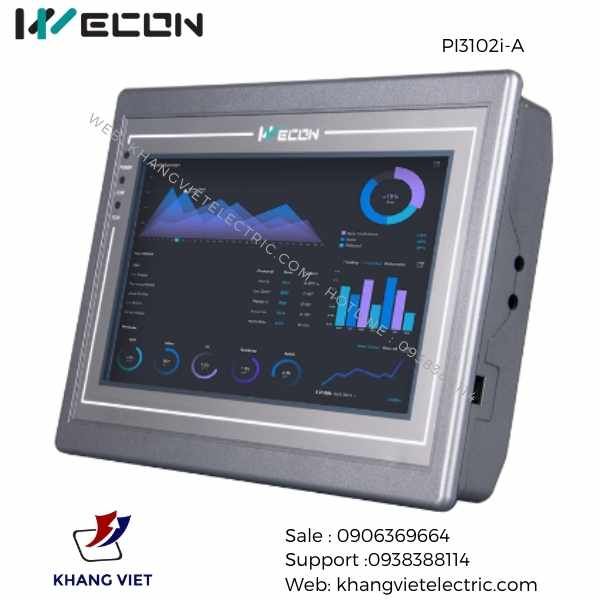

PI3102i-A HMI Wecon : Bảo hảnh 18 tháng, tuổi thọ đến 50.000h
| Series | PI3000i | PI3000i | PI3000i | PI3000i | PI3000i |
| | Model | PI3070i | PI3102i | PI3070i-A | PI3102i-A |
Main | OS | Linux 4.9.11 QT based | Linux 4.9.11 QT based | Linux 4.9.11 QT based | Linux 4.9.11 QT based |
| Processor | Cortex A7 528MHz | Cortex A7 528MHz | Cortex A7 528MHz | Cortex A7 528MHz |
Display | Size | 7" | 10.2" | 7" | 10.2" |
| Screen | TFT | TFT | TFT | TFT |
| Resolution | 800*480 | 1024*600 | 800*480 | 1024*600 |
| Color | 16,000k colors | 16,000k colors | 16,000k colors | 16,000k colors |
| Brightness (cd/m2) | 250 | 350 | 250 | 350 |
| Backlight | LED | LED | LED | LED |
| Backlight Lifetime | 50,000 hours | 50,000 hours | 50,000 hours | 50,000 hours |
| Touch Panel | High precision
four-wire resistive | High precision
four-wire resistive | High precision
four-wire resistive | High precision
four-wire resistive |
Storage | Memory | 128 MB | 128 MB | 128 MB | 128 MB |
| Flash | 128 MB | 128 MB | 128 MB | 128 MB |
| SD Card Slot | -- | -- | YES | YES |
| USB Port | USB2.0 Host +
USB2.0 Client | USB2.0 Host +
USB2.0 Client | USB2.0 Host +
USB2.0 Client | USB2.0 Host +
USB2.0 Client |
RTC | Real-time clock | Yes | Yes | Yes | Yes |
| Calendar | Yes | Yes | Yes | Yes |
I/O Port | COM1 | CN1:RS422/RS485
CN2: RS232 | CN1:RS422/RS485
CN2: RS232 | RS232,RS422/RS485 | RS232,RS422/RS485 |
| COM2 | -- | -- | RS232,RS485 | RS232,RS485 |
| COM3 | -- | -- | RS485 | RS485 |
| Ethernet | -- | x1 | x1 | x1 |
| CANopen | -- | -- | x1 | x1 |
| Wi-Fi | -- | -- | -- | -- |
| 4G LTE | -- | -- | -- | -- |
Power | Rated Power | < 8W | < 10W | < 8W | < 10W |
| Power Voltage | DC 24V | DC 24V | DC 24V | DC 24V |
| Input range | DC 12 ~ 28V | DC 12 ~ 28V | DC 12 ~ 28V | DC 12 ~ 28V |
| Shell Color | Grey | Grey | Grey | Grey |
Enclosure | Shell Material | PC+ABS | PC+ABS | Plastic+ABS
(Polycarbonate) | PC+ABS |
| Overall Size (mm) | 201.2W*147.2H*39.0D | 272.0W*190.0H*41.5D | 200.0W*146.0H*36.5D | 272.0W*190.0H*41.5D |
| Mounting Size (mm) | 192.0W*138.0H | 260.0W*179.0H | 192W*138H | 260.0W*179.0H |
| Mounting Method | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Weight (Kg) | 0.74 | 1.31 | 0.74 | 1.31 |
Environment | Working Temperature | -10 ~ 60°C | -10 ~ 60°C | -10 ~ 55°C | -10 ~ 60°C |
| Storage Temperature | -20 ~ 70°C | -20 ~ 70°C | -20 ~ 70°C | -20 ~ 70°C |
| Humidity | 10 ~ 85％RH
(Non-condensing) | 10 ~ 85％RH
(Non-condensing) | 10 ~ 85％RH
(Non-condensing) | 10 ~ 85％RH
(Non-condensing) |
| Vibration Resistance | 10 ~ 25 Hz (X, Y, Z
direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z
direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z
direction 2G/30 minutes) | 10 ~ 25 Hz (X, Y, Z
direction 2G/30 minutes) |
| Cooling | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
Software | Programming | PIStudio | PIStudio | PIStudio | PIStudio |
| Remote Access | -- | -- | Yes | -- |
| Email Alarm | -- | -- | UD | -- |
| IP Camera | -- | -- | -- | -- |
| Audio Output | -- | -- | -- | -- |
| Video Player | -- | -- | -- | -- |
| | Data Tool | Yes | Yes | -- | Yes |
Certificates | IP Code | IP65 (Front panel) | IP65 (Front panel) | Yes | IP65 (Front panel) |
| CE | CE Marked | CE Marked | IP65 (Front panel) | CE Marked |
| FCC | FCC Class A | FCC Class A | CE Marked | FCC Class A |
| UL | -- | -- | FCC Class A | -- |
